바렐연마석 | DEBURRING · DESCALING · SURFACE IMPROVING · POLISHING
MEDIA SIZE
| SHAPE | T | TK | D | CK | S | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| TRIANGLE STRAIGHT CUT |
TRIANGLE DIAGONAL CUT |
DIAMOND | CYLINDER DIAGONAL CUT |
SPHERE | ||||||
 |
 |
 |
 |
 |
||||||
| GRADE | H.M.F.L | H.M.F.L | H.M | H.M.F.L | H.M.F.L | |||||
| SIZE | NO. | A × B × C (mm) |
NO. | A × B × C (mm) |
NO. | A × B × C (mm) |
NO. | D × L (mm) |
NO. | D (mm) |
| 6 | 6 × 6 × 6 | 10 | 10 × 10 × 7 | 1 | 55 × 35 × 18 | 6 | 6 × 12 | 6 | 6 | |
| 10 | 10 × 10 × 8 | 12 | 12 × 12 × 9 | 2 | 55 × 35 × 24 | 8 | 8 × 16 | 7 | 7 | |
| 12 | 12 × 12 × 10 | 15 | 15 × 15 × 10 | 3 | 45 × 30 × 16 | 10 | 10 × 20 | 8 | 8 | |
| 15 | 15 × 15 × 12 | 20 | 20 × 20 × 13 | 4 | 45 × 30 × 20 | 12 | 12 × 25 | 10 | 10 | |
| 20 | 20 × 20 × 16 | 30 | 30 × 30 × 13 | 15 | 15 × 30 | 12 | 12 | |||
| 30 | 30 × 30 × 30 | 20 | 20 × 40 | 15 | 15 | |||||
| 35 | 35 × 35 × 35 | 20 | 20 | |||||||

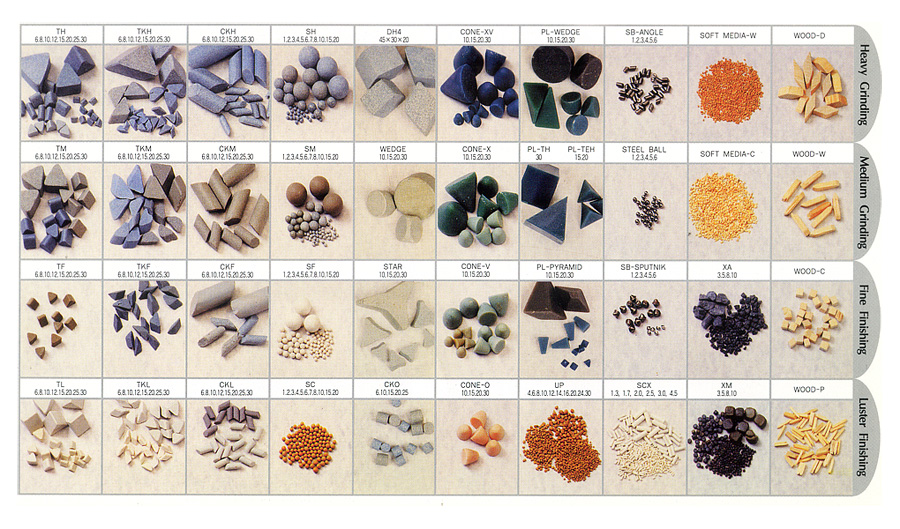

| USAGE BY GRADE H : HEAVY GRINDING M : MEDIUM GRINDING F : FINE FINISHING L : LUSTER FINISHING |
 |
10 | A10 × B10 | XV : 15RMS | ||||||
| 15 | A15 × B15 | X : 10RMS | ||||||||
| 20 | A20 × B20 | V : 5RMSS | ||||||||
| 30 | A28 × B30 | |||||||||
| 32 | A32 × B32 | |||||||||
| SCX : SUPER POLISHING |
 |
1.3 | 1.3 × 3 |  |
5 | 4.0 ~ 5.2 | ||||
| UP, XM : MICRO CUTTING |
1.7 | 1.7 × 5 | 8 | 2.5 ~ 3.5 | ||||||
| & POLISHING | 3.0 | 3.0 × 10 | 10 | 2.0 ~ 2.6 | ||||||
| 4.5 | 4.5 × 14 | 12 | 1.5 ~ 2.2 | |||||||
